Floor Plan

Main Level

Bonus Level

Main Floor – Basement Option

Unfinished Basement

Plan Details

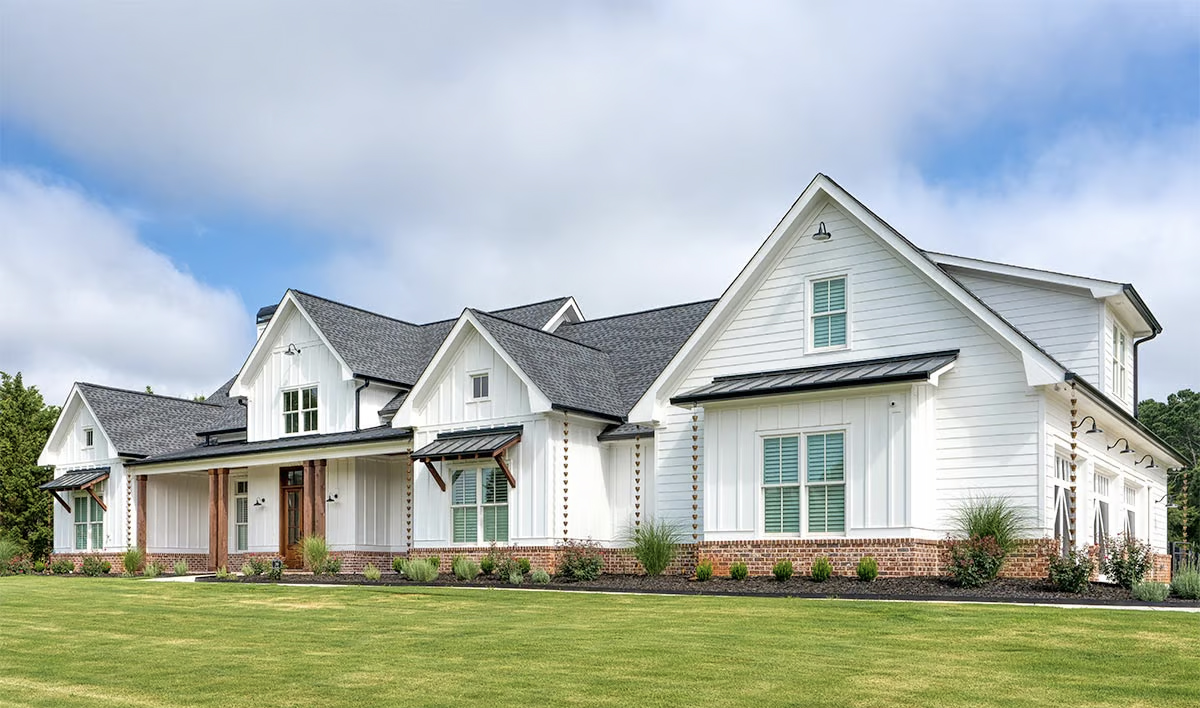

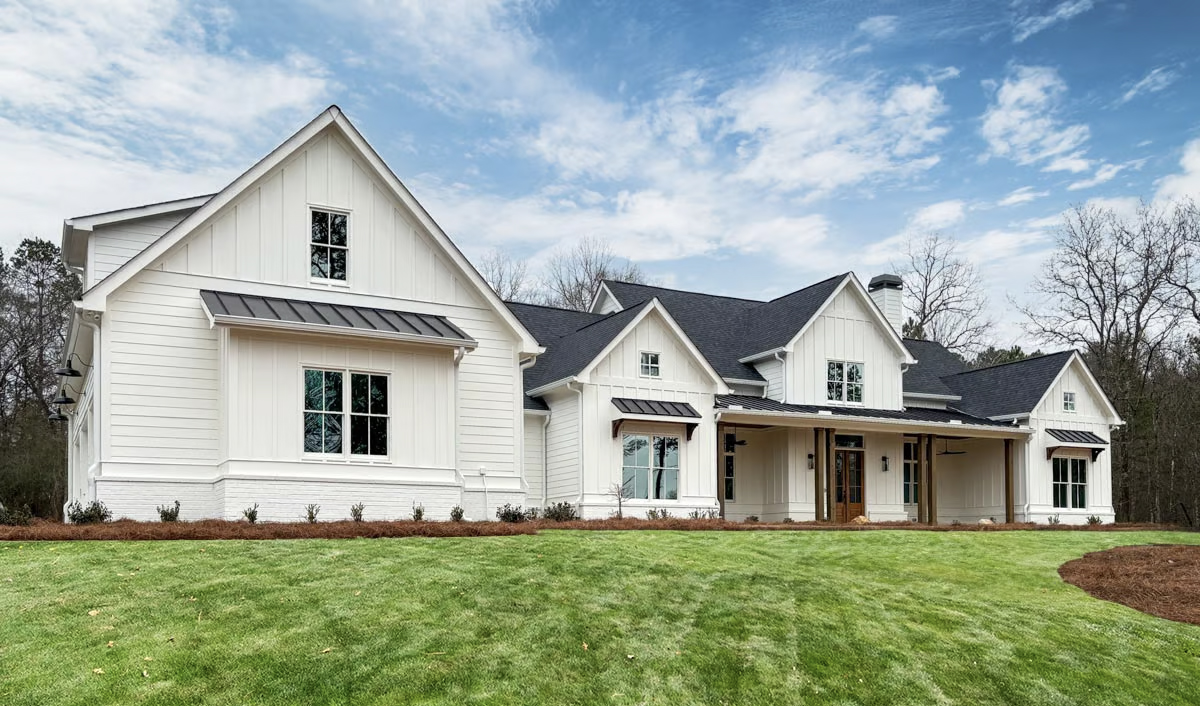

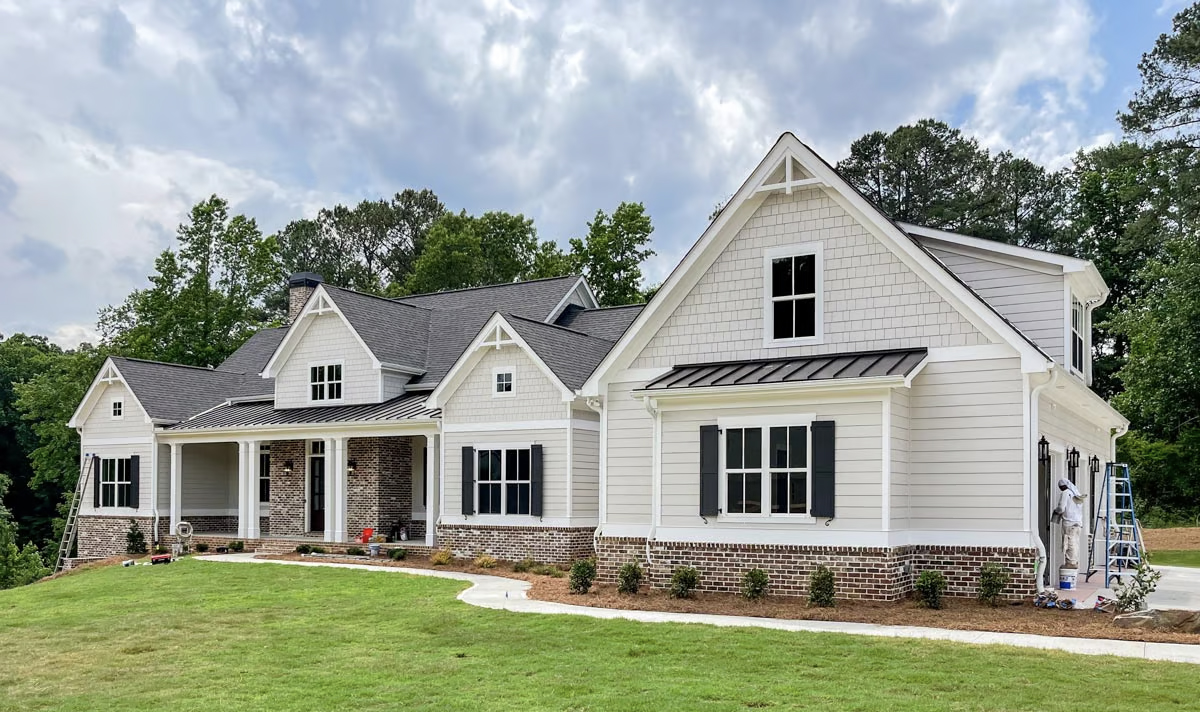

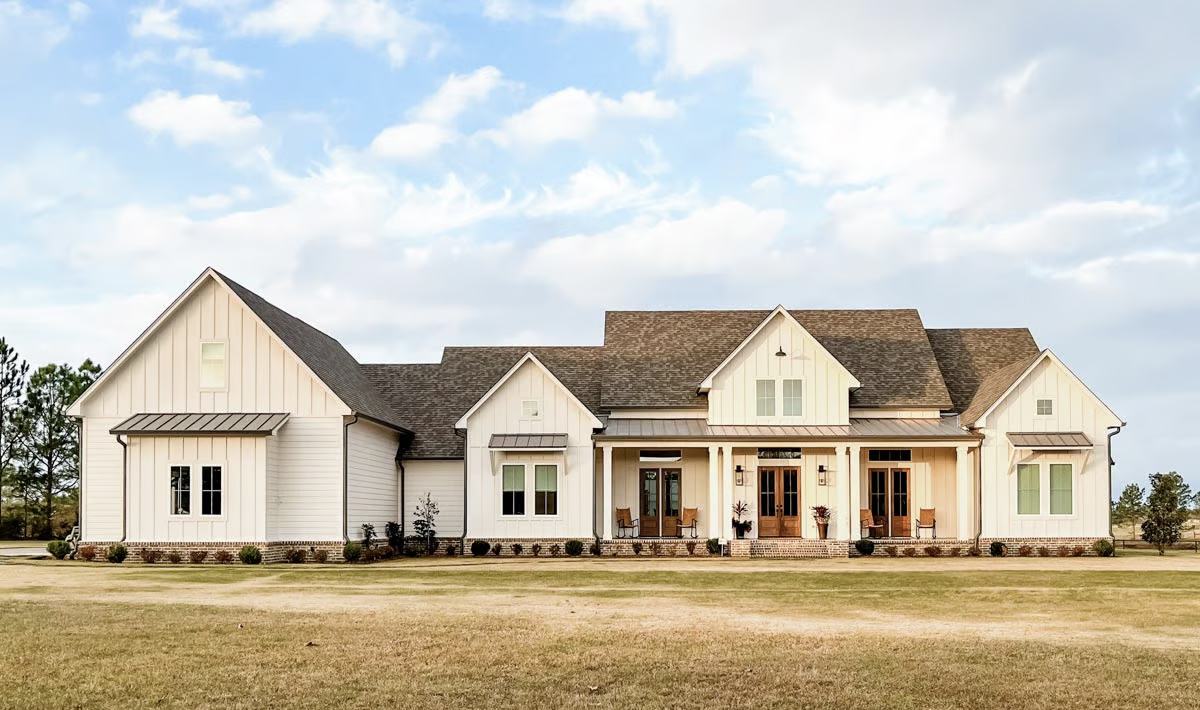

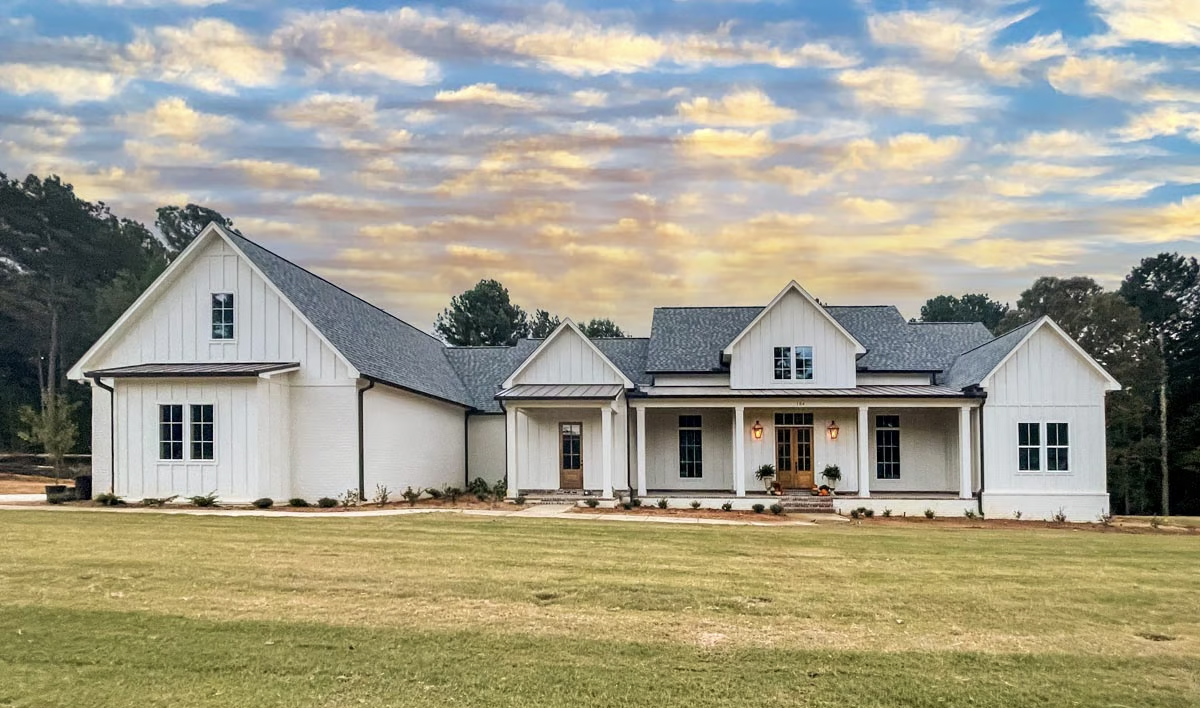

  • Enjoy time spent with friends and family in this modern farmhouse, which features a spacious, open-concept living space in the center of the home, surrounded by a large, front and back porch.
  • An oversized island in the kitchen increases workspace, while offering seating for four. Down the hall, barn doors reveal an office or flex room.
  • French doors in the master suite lead to the back porch, and a cathedral ceiling produces an elegant feature. The en suite includes 5-fixtures with a walk-in shower and massive closet that leads to the laundry room.
  • Three secondary bedrooms are located on the opposite side of the home; two share a Jack-and-Jill bath, and one includes a full bath.
  • Built-in lockers in the mudroom help you remain organized when entering from the 3-car garage, and the multi-purpose bonus room above awaits the homeowner’s finishing touch.
What’s Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What’s Not Included
  • Architectural or Engineering Stamp – handled locally if required
  • Site Plan – handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
  • Energy calculations – handled locally when required

Square Footage Breakdown

Total Heated Area

3,095 sq. ft.

1st Floor

3,095 sq. ft.

Bonus

490 sq. ft.

Porch, Combined

943 sq. ft.

Storage

55 sq. ft.

Exterior Walls

Exterior Walls

2×4

Optional Type(s)

2×6

Dimensions

Width

111' 5"

Depth

75' 2"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

1063 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

11'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Stick
