European Architectural Supply takes great pride in providing truly custom our wood windows and doors for each individual project, and we always consider and evaluate any suitable option a customer may request. Our motto is: “If you can draw it, we can build it.” Due to the flexibility of custom work and because of the variety of customer needs and requirements it is difficult for European Architectural Supply to define our “standard” product.
  MW88 MW88G2 MW88-Classic
Description Passive House Spec All-Wood Windows PHI Certified All-Wood Windows Passive House Spec Aluminum-Clad Wood Windows
Manufacturer Makrowin Makrowin Makrowin
Frame Width
(below/above/sides)		 5.315 / 4.685 / 4.685 5.937 / 5.154 / 5.154 4.685 / 4.685 / 4.685 in
Uf-Value Frame
(below/above/sides)		 0.192 / 0.173 / 0.173 0.141 / 0.132 / 0.132 0.187 / 0.184 / 0.184 Btu/(hr·ft2·F)
Ψ-Spacer
(below/above/sides)		 0.017 0.017 0.018 Btu/(hr·ft2·F)
Uf-Value Frame 0.178 0.134 0.185 Btu/(hr·ft2·F)
Ucog-Value Glass 0.088 0.088 0.088 Btu/(hr·ft2·F)
Uw-Value Window 0.129 0.116 0.131 Btu/(hr·ft2·F)
  AluInside SI 82 AWS 90
Description PHI Certified uPVC Windows Passive House Spec Best-Value uPVC Windows PHI Certified Aluminum Windows
Manufacturer Schuco Schuco Schuco
Frame Width
(below/above/sides)		 4.72 4.72 4.61 in
Uf-Value Frame
(below/above/sides)		 0.133 / 0.134 / 0.134 0.194 / 0.194 / 0.194 0.176 / 0.176 / 0.176 Btu/(hr·ft2·F)
Ψ-Spacer
(below/above/sides)		 0.016 0.016 – Btu/(hr·ft2·F)
Uf-Value Frame 0.133 0.194 0.176 Btu/(hr·ft2·F)
Ucog-Value Glass 0.088 0.088 0.088 Btu/(hr·ft2·F)
Uw-Value Window 0.114 0.134 0.128 Btu/(hr·ft2·F)

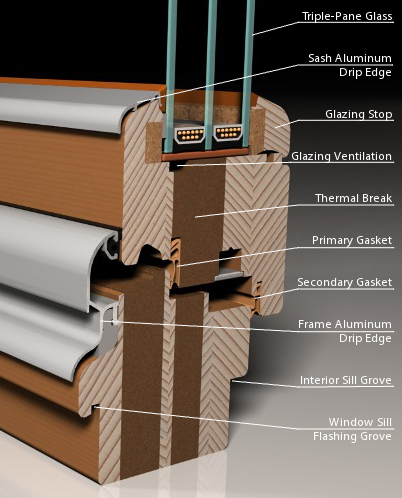

Anatomy of our Wood Windows: MW88G2

  • Sash Aluminum Drip Edge: Protects the horizontal surface of the sash, which is vulnerable to damage from water and ice that tend to accumulate at this location. Extruded aluminum drip edge is ventilated from below.
  • Glazing Ventilation: This grove is critical to ventilating any moisture that may condense along the cold zone around the insulated glazing.
  • Frame Aluminum Drip Edge: Protects the part of the frame most subjected to rain, snow and ice accumulation. Includes a drip edge, thermal break and a seal against the primary gasket.
  • Primary Gasket: The first barrier against air infiltration.
  • Window Sill Flashing Grove: Milled into the frame to provide an attachment point for sill flashing. Can be customized for wood, aluminum and cast stone sills.
  • Double-Pane Argon Filled Low-E Glass: For a total of 1' of unparalleled thermal protection. With a COG u-value of 0.19 it just does not get any better. Fifteen other types of glass are also available, including laminated and tempered glass.
  • Thermal Break: Provides a thermal break between the sealed air chamber and the aluminum, dramatically reducing the heat transfer from the metal.
  • Glazing Stop: Pre-finished for perimeter protection. Attached with invisible pins concealed under the seal. Removable for glazing repair.
  • Secondary Gasket: Omitted by most window manufacturers. Provides a true weather-tight seal.
  • Interior Sill Grove: Makes for an easy installation of the interior sill.

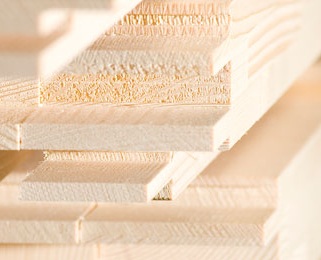

LUMBER
All of our wood is selected from sustainable growth areas. Our offering includes Clear Spruce, Clear Pine, Oak, Mahogany and European Larch.

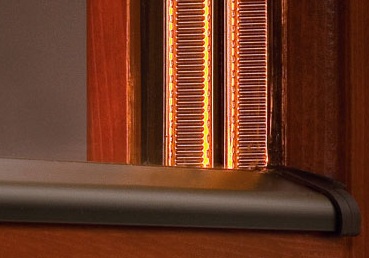

GLASS
Insulated glass starting at 3/8″ thickness, with the following options: Low-E, Argon-filled, laminated, tempered, restoration glass, privacy glass, colored glass, leaded, obscure, bent and curved shapes, motorized and internal blinds, bullet and impact resistant glass

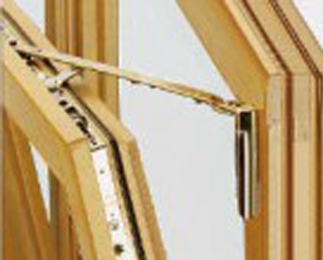

HARDWARE
Homeowners, architects, and industry professionals in America are discovering the superior function of European style windows and doors. Due to their advanced functional benefits and superior construction, tilt-turn windows and doors are becoming more and more popular in America.

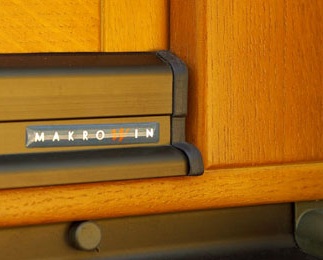

FINISH
All of our products are pre-finished at the factory like handcrafted furniture. Our three-step finishing system will far surpass any finish that can be applied on the jobsite. Before the glazing is applied the entire window/door in dipped into a wood preservate. Next, the two finish coats are sprayed on.
