MFH 3086 4/3,5 L1 3cg - BuildRite LLC Remodeling and Construction

  • Home
  • MFH 3086 4/3,5 L1 3cg

Floor Plan

Main Level

Bonus Level

Bonus Level

Plan Details

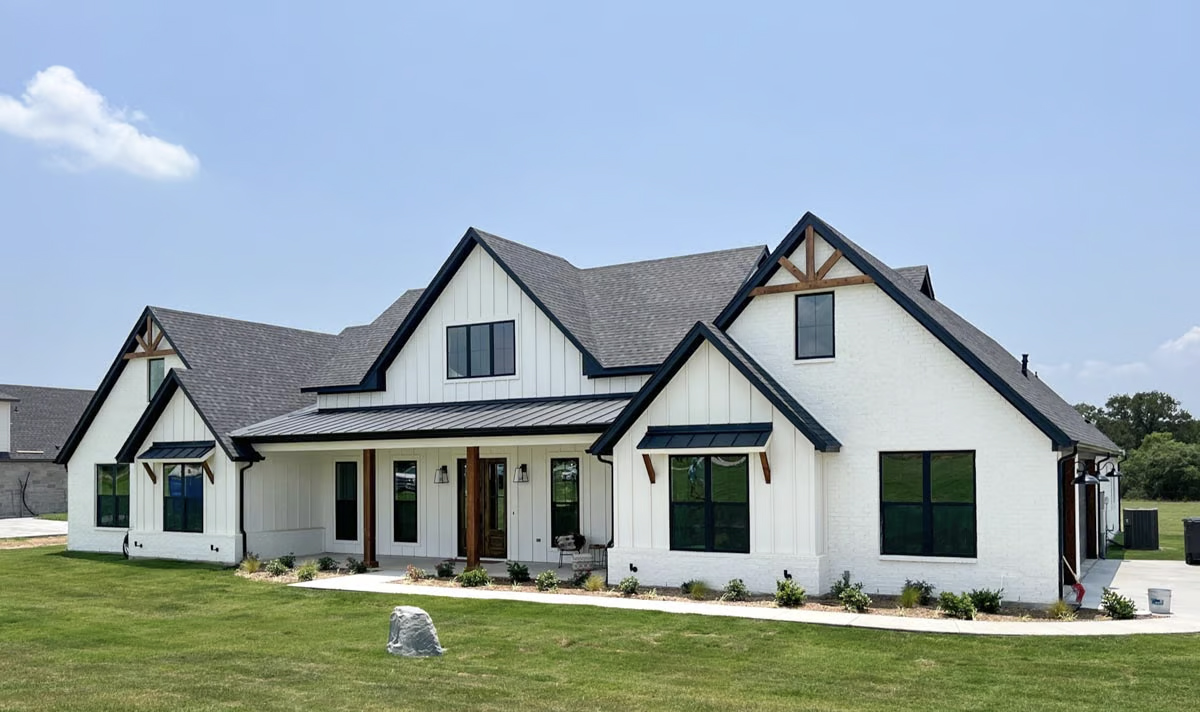

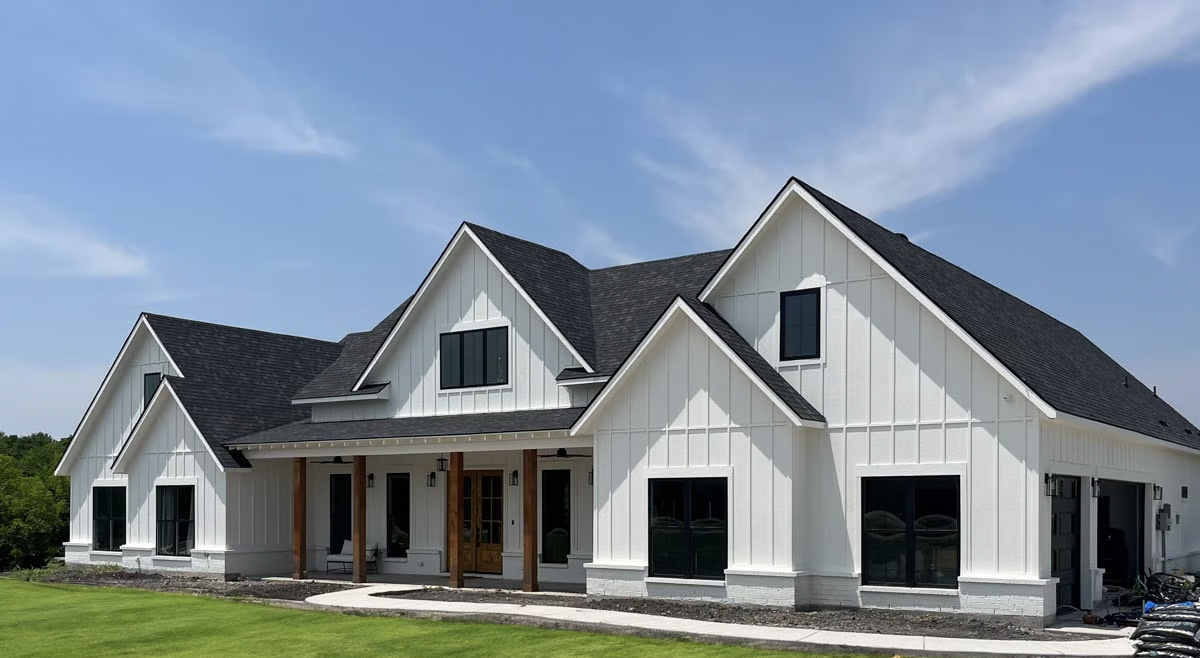

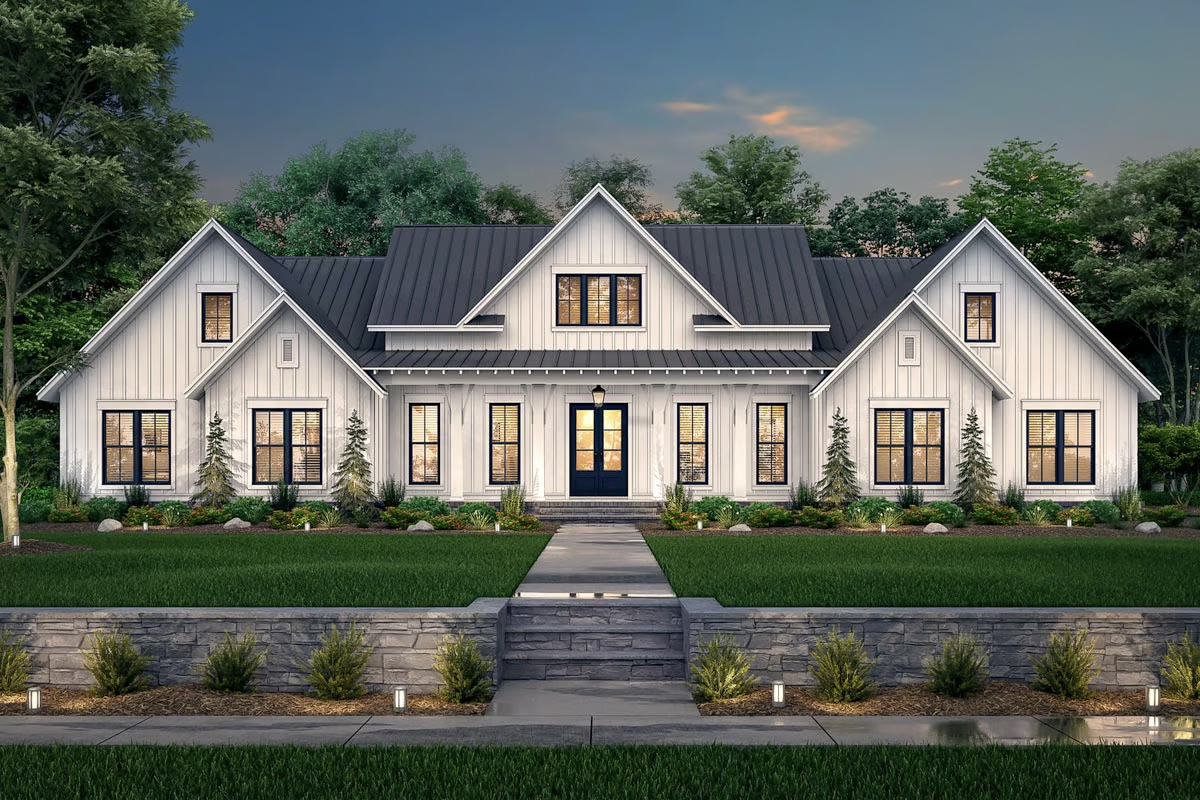

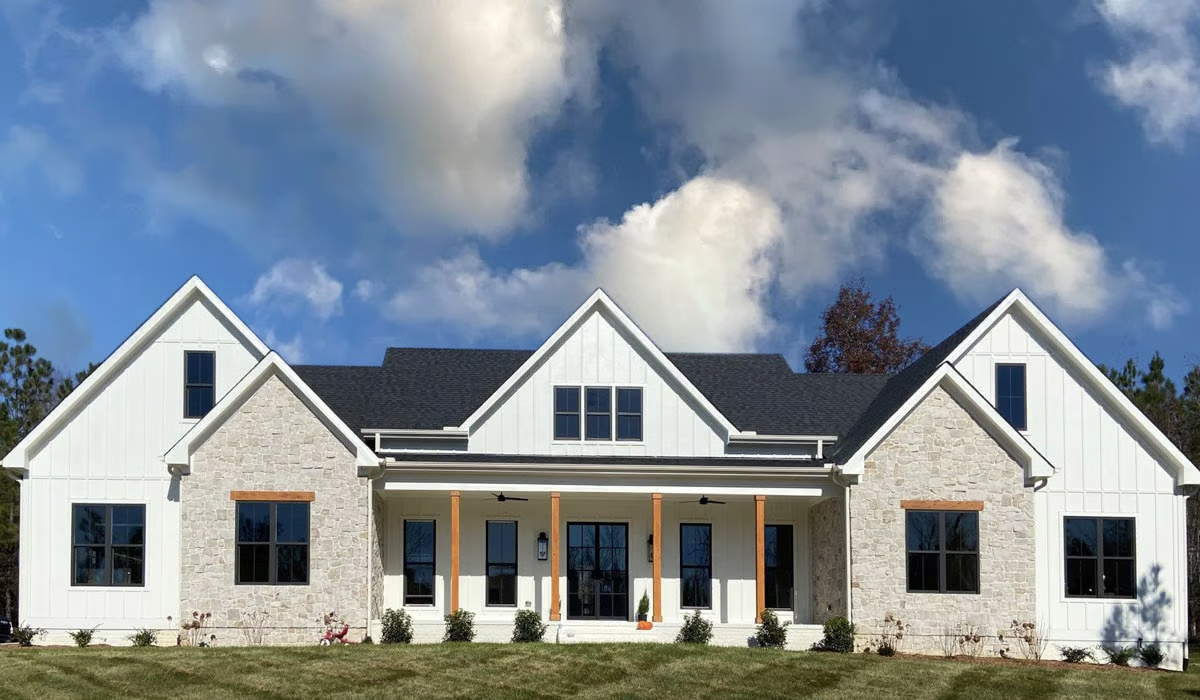

  • This modern farmhouse plan expands on our popular plan 51814HZ (which itself expands upon house plan 51758HZ) and gives you an extra bedroom, a game room and a 3-car garage.
  • Enter the foyer off the front porch and your view extends through the dining room to the French doors that take you to the large rear porch. To your right, a single door takes you to your private home office.
  • The large kitchen has views that extend across the dining room tot he great room. A large island with eating bar and a true walk-in pantry are two great features you'll enjoy.
  • The master suite has a vaulted ceiling and the convenience of having access to the laundry room through the walk-in closet. Across the home, you'll find three more bedrooms, two bathrooms plus a game room with access to the outside.
  • An optional upstairs bonus room over the garage gives you 525 sq. ft. and has a full bath and would be perfect for a guest suite or that family game room.
  • Related Plans: Get a 3-bed, 2-car version with house plan 51814HZ (2,553 sq. ft.) and 51810HZ (3,076 sq. ft.). Get a smaller version with house plan 51758HZ (2,282 sq. ft.) and a similar floor plan with house plan 51916HZ (2,977 sq. ft.).

What's Included
This house plan consists of the following pages
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3A  Detailed main floor plan(includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 3B  Detailed bonus floor plan(includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Front and rear exterior views with additional details
Page 5  Right and left exterior views with additional details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan & notes/ legend
What's Not Included
  • Architectural or Engineering Stamp – handled locally if required
  • Site Plan – handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Square Footage Breakdown

Total Heated Area

3,086 sq. ft.

1st Floor

3,086 sq. ft.

Bonus

525 sq. ft.

Porch, Front

285 sq. ft.

Porch, Rear

403 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1

Exterior Walls

Exterior Walls

2×4

Optional Type(s)

2×6

Dimensions

Width

85' 8″

Depth

69' 0″

Max Ridge Height

27' 0″

Garage

Type

Attached

Area

890 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4″

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick
